The One LED Project Everybody Should Try

A Practical Guide for Hobbyists, Tinkerers, and Occasional Solder-Smellers

Introduction

If you’ve ever laid eyes on a blinking LED and thought, “I could do that,” – well, you’re right. And you absolutely should. The single-LED project is an electrifying rite of passage in the world of electronics. Whether you’re a fresh-faced beginner or a solder-stained veteran, this project remains the humble yet mighty launchpad for mastering circuits, coding, and the occasional bout of component-induced frustration.

This guide walks you through the how-to, the why-it-matters, and the “uh-oh” moments – because we’ve all accidentally installed an LED backwards and lived to tell the tale.

Objectives

Upon completing this project, you will:

  • Understand the basics of an electronic circuit.
  • Grasp polarity and how to avoid reverse-engineering disasters.
  • Master the use of resistors (not just as confetti).
  • Learn to write and upload simple code (Arduino-style).
  • Make one single LED blink like it’s 1999.

Also, there might be a point where you raise your hands in victory and whisper, “It’s alive,” à la Frankenstein. That’s encouraged.

Required Components

Let’s keep it classic and fuss-free. Here’s what you need:

Hardware

  • 1 x LED (any color, but red makes you feel 20% more scientific)
  • 1 x Resistor (220Ω to 330Ω recommended)
  • 1 x Breadboard (aka your electronic sandbox)
  • Jumper wires (your colorful friends)
  • 1 x Arduino Uno (or compatible board)
  • 1 x USB cable (for connecting your dreams to your laptop)

Software

  • Arduino IDE (free, friendly, and surprisingly forgiving)

Step 1: Know Your LED

An LED (Light Emitting Diode) is like a diva – it shines bright but only on its terms. That means polarity matters.

  • Long leg = Anode (positive)
  • Short leg = Cathode (negative)

If you wire it backwards, it won’t explode (phew), but it’ll just sit there in silent rebellion.

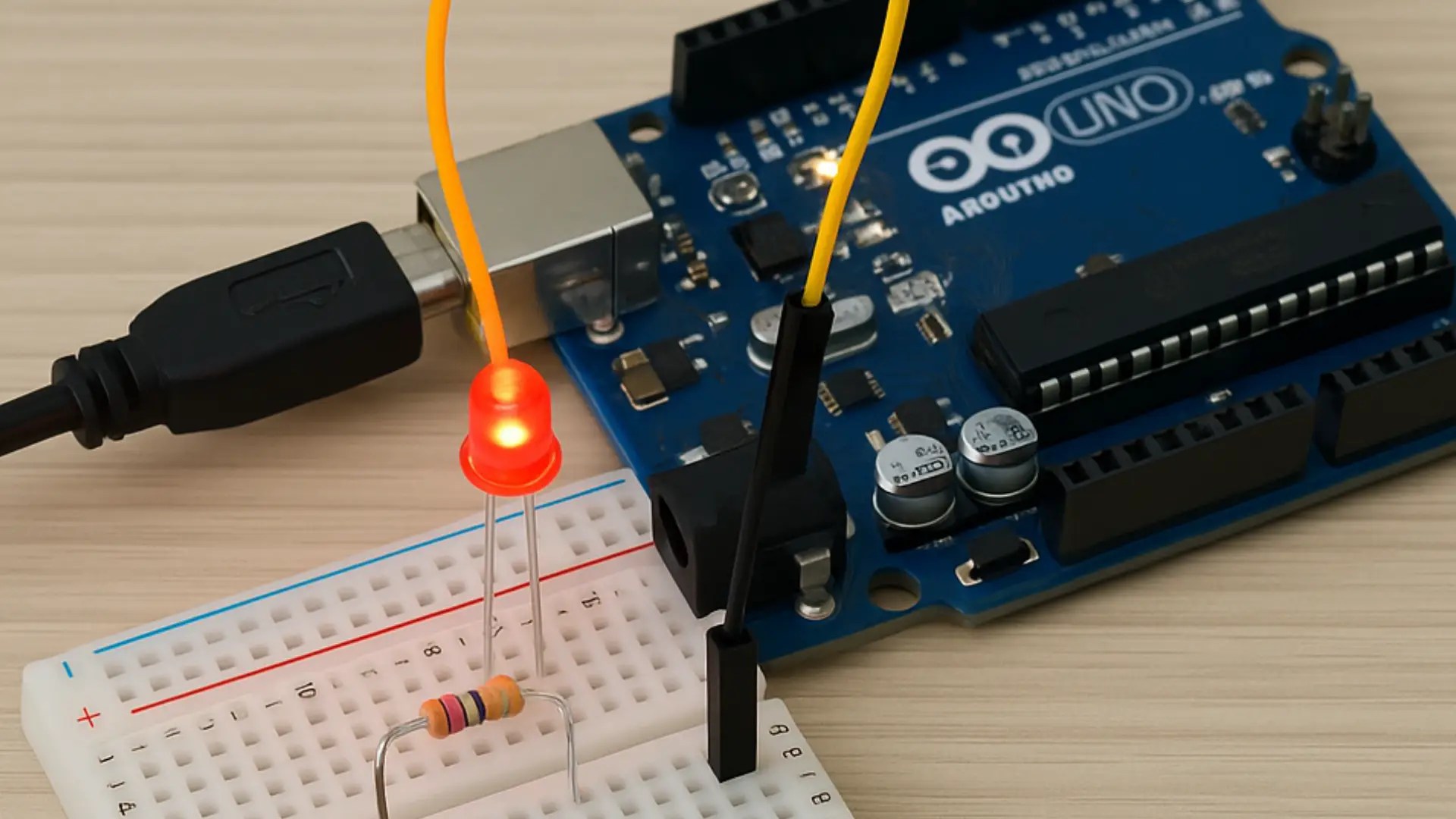

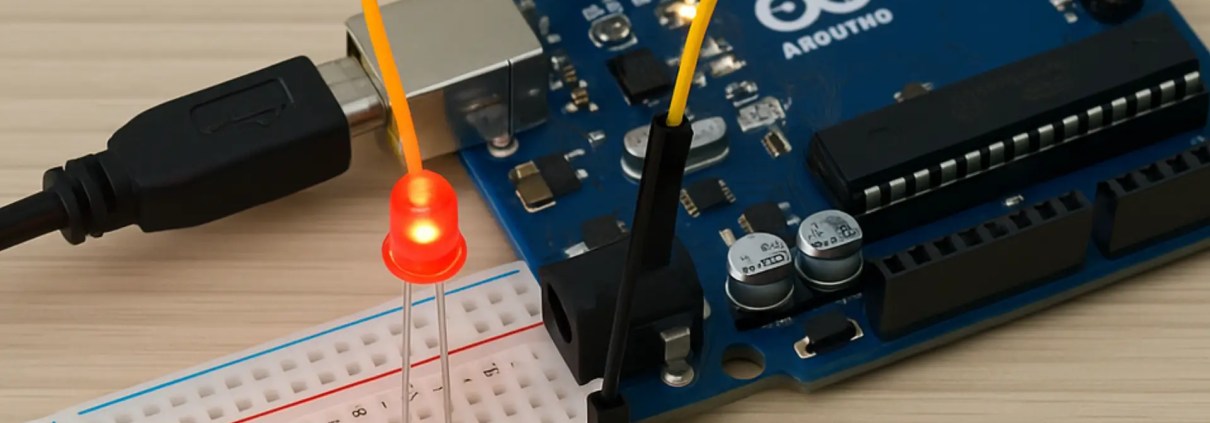

Step 2: Circuit Assembly

Here’s where we make the magic happen. Follow this order like a recipe:

  1. Insert the LED into the breadboard. Place the anode and cathode on separate rows.
  2. Connect a resistor from the cathode (short leg) to the GND (ground) rail on the breadboard.
  3. Wire the anode to pin 13 on the Arduino. This pin has a special talent – it can blink an LED without even needing code modifications (but we’re writing our own, so flex on).
  4. Use jumper wires to connect the breadboard ground rail to the GND pin on your Arduino.

Congratulations. You’ve just created an honest-to-goodness current path. If circuits had LinkedIn, yours would be endorsed for “Directionally Reliable Electron Flow.”

Step 3: Coding Time

Open the Arduino IDE. Feel free to type this code manually, because copy-paste is for mortals.

cpp

CopyEdit

void setup() {

  pinMode(13, OUTPUT); // Sets pin 13 as an output

}

void loop() {

  digitalWrite(13, HIGH); // Turn the LED on

  delay(1000);            // Wait for 1 second

  digitalWrite(13, LOW);  // Turn the LED off

  delay(1000);            // Wait for 1 second

}

This is the classic blink loop. The LED turns on for 1 second and off for 1 second, forever. Like your favorite Spotify playlist, it just keeps looping.

Upload Instructions

  1. Plug in your Arduino.
  2. Select the correct port and board under Tools.
  3. Hit the Upload button (the right-arrow icon).
  4. Wait for that sweet, sweet “Done uploading” message.

Troubleshooting (a.k.a. Why Won’t It Work?!)

If your LED refuses to blink, don’t panic. Electronics is 30% creativity, 20% patience, and 50% fixing things you broke 10 minutes ago.

Common Culprits

  • LED is backward: Remember the leg rule.
  • Wrong resistor placement: Make sure it’s in series with the cathode, not trying to be artistic.
  • Code not uploaded: Arduino might be on strike until you pick the right COM port.
  • Loose jumper wires: These things disconnect more than flaky Wi-Fi.

When in doubt, take a break. Sometimes your breadboard just needs to know who’s boss.

Experimentation Station

You did it. You made an LED blink. But don’t stop there. This is just the beginning of your bright journey. (Yes, that pun was intentional.)

Here are ways to extend the project:

  • Change blink intervals to simulate different rhythms (heartbeat, Morse code, 90s rave).
  • Add more LEDs and chain them with different pins – let them dance.
  • Try a button input to control the LED manually. Feel the power!
  • Use PWM (Pulse Width Modulation) for dimming effects. Welcome to the big leagues.

If this part gets addictive – don’t worry. That’s normal. Welcome to the club.

Bonus: Pro Tips from the Workshop

  • Label your wires. Your future self will thank you.
  • Color-code wires by function. Red for power, black for ground, rainbow for chaos (just kidding).
  • Take photos of your layout. Great for remembering what worked – and what didn’t.
  • Store your resistors neatly. Or let them party in a tangled ziplock bag. Your call.

And one more thing – don’t lick the 9V battery. It’s not part of this project, but we know someone out there is thinking about it.

Wrapping Up

The single LED project is deceptively simple. Beneath its blink lies an entire universe of electronics knowledge – circuit theory, digital output, current limiting, and hands-on debugging. It teaches you how to speak the language of machines, one pulse at a time.

So give yourself a pat on the back (or a dramatic bow, up to you). You’ve taken your first real step into DIY electronics. From here, the possibilities are only as limited as your parts bin.

Now go forth. Blink with confidence. Solder responsibly. And may your magic smoke stay safely inside the components.

P.S. If your LED blinks once and never again, check if you accidentally coded an existential crisis.
